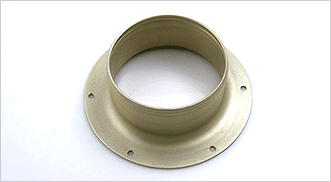

Bulkhead Coupler or Split Bulkhead Coupler

​

Bulkhead Coupler or Split Bulkhead Couplers are circular components used for mounting ShieldZip™ to a specific opening location, providing continuous shielding and a positive termination point. Split Bulkhead are used for easy retro fitting where cabling is already in place. Hose clamps can be used to attach the ShieldZip™ to the coupler.

​

​

​

​

​

​

​

​

​

            Bulkhead                  Split Bulkhead





Material Specifications:
• SAE 1010 Steel
• Tin Plate ASTM-B-545 Class C
• Sn/Cu/Fe per ASTM-B-520   .0045 wire diameter
• Neoprene Sponge per ASTM-D-6576
* Excellent cost effective retro fit for bundled cables and cable harness applications

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

                                                        Alco-Knit Shielding Effectiveness
