Metal Strips

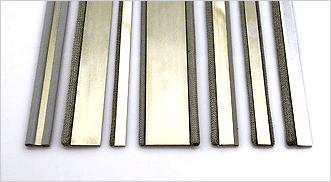

Metal Strips is a rigid EMI aluminum strip with a wire mesh and or elastomer gasket secured into the groove of the extrusion. Wire-Knit gaskets are supplied in standard wire alloys in several configurations and size to meet specific shielding requirements. Wire-Knit Elastomer Core gaskets may be applied for environmental pressure sealing. Wire-Knit or Elastomer Core gaskets may be applied in any combination to one or both sides of the strip.  Metal strips are fabricated with specific hole size, location, slots and countersinks for alignment. Ready-to-mount strips are attached with rivets, fasteners or spot welded to flange surfaces. Lengths range from two inches to eight foot lengths and come in multiple profiles. Strips are supplied unfinished or Chromate Coated per MIL-DTL-5541 Class 1or 3 to enhance shielding performance and corrosion resistance. Metal Strips add structural strength to enclosures and perform as a positive compression stop where a rigid gasket is required.






​

​

​

​

​











Material Specifications:

• Frame Aluminum 6063-T4 Alloy per ASTM-B221

• Frame Aluminum 6061-T6 Alloy per AMS-QQ-A-200/8 or ASTM-B209

Wire-Knit
• Aluminum Wire per AMS-4182 / 5056 Alloy .005 wire diameter
• Monel Wire per QQ-N-281 .0045 wire diameter
• Sn/Cu/Fe per ASTM-B-520 .0045 wire diameter

Elastomer Core
• Neoprene Sponge per ASTM-D-6576
• Silicone Sponge per AMS-3195

Finish Options:
• Chromate Coating MIL-DTL-5541 Type I or Type II, Class 1 or Class 3 (Gold or Clear)

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

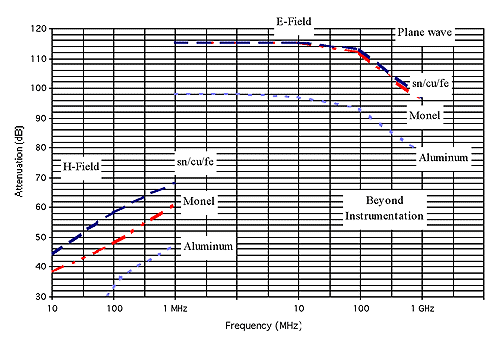

                                                        Wire-Knit Shielding Effectiveness
