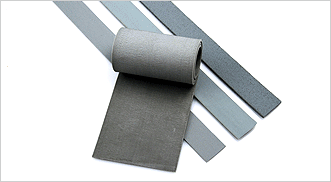

Alco-Meric-H Gasket and Strip

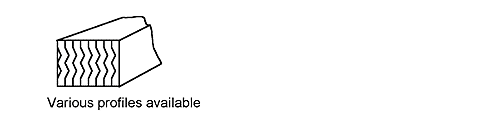

Alco-Meric-H is an environmental EMI weather seal gasket designed for magnetic (H) field and electric (E) field plane wave shielding. Continuous expanded copper sheets are embedded with high grade silicone. Exposed contact points are tin plated with tin alloy to create a lower interface contact offering high conductivity for improved shielding effectiveness. Alco-Merci-H is supplied in bonded die cut configurations or strip form.Recommended closure force is 20 psi to100 psi.























Material Specifications:
Silicone Solid per A-A-59588 -56° C to 204° C [-70 ° F to 400° F]
Expanded Copper





















































                                                     Alco-Meric-H Shielding Effectiveness
